  • Jo Hocking | Woman Manufacturer of the Year 2025

    Jo Hocking | Woman Manufacturer of the Year 2025

    [uncode_socials size=”lead”]

    This is custom heading element

    On 9 October 2025 Jo Hocking, Director of Finance, Sales and Marketing at Copamate, was recognised as the Victorian Woman Manufacturer of the Year at the Victorian Manufacturing Hall of Fame Awards. This honour reflects her exceptional leadership in advancing Victorian manufacturing, her strategic influence across operations and commercial performance and her role in strengthening Copamate’s position as a benchmark for innovation and industry capability in Australia.

    no image

    About Jo Hocking

    Jo Hocking is a highly accomplished leader in Australian manufacturing and currently serves as the Director of Finance, Sales and Marketing, and co-owner of Copamate. Since officially becoming co-owner in 2024, Jo has continued to drive strategic growth for the business, building on decades of dedication to the company and the manufacturing industry at large.

    no image

    The Inception of Copamate

    Jo’s journey with Copamate began at its inception in 1993, when the company was founded by her father in their family home. From the early days, Jo was actively involved in helping establish structure and processes to support the company’s growth. While contributing to the family business, she also completed a Bachelor of International Business and held several other jobs, showcasing her strong work ethic and determination.

    Jo Hocking’s Leadership

    In 2008, Jo stepped into the role of General Manager, successfully overseeing the company’s operations and navigating it through a crucial phase of expansion and development. She led the business until 2015, after which she transitioned into her current role, focusing on financial management and commercial strategy. At the same time, her now-business partner took over the General Manager role.

    This is custom heading element

    Since 2018, under Jo’s financial and strategic leadership, Copamate secured a major contract to supply refurbishment and new assemblies for the world’s largest tram refurbishment project. This achievement marked a turning point for the company, leading to a renewed focus on investment in capabilities, workforce development and technical excellence.

    no image

    Copamate Today

    Today, Copamate operates with an impressive breadth of in-house capabilities, serving critical sectors such as rail, transport, pipeline, infrastructure and industrial manufacturing. The company specialises in both new component manufacturing and refurbishment, offering bespoke engineering solutions tailored to complex industry requirements.

    no image

    The Critical Role Women Play in Manufacturing

    Jo Hocking’s leadership has not only contributed to Copamate’s long-standing success but has also set an example for innovation, resilience, and strategic thinking within the manufacturing sector. Her story reflects the strength of intergenerational business leadership and the critical role women play in driving the future of Australian industry.

    [uncode_block id=”142671″ inside_column=”yes”]
  • A Class Tram | Details & History

    A Class Tram | Details & History

    [uncode_socials size=”lead”]

    The A Class Tram stands as one of the most distinctive and historically significant tram types on the Melbourne tram network.

    Built by Commonwealth Engineering (Comeng) at Dandenong between 1984 and 1987, the A class was a direct evolution of the Z-class trams yet reflected a significant political and engineering shift in Victoria’s public transport design philosophy.

    Seventy units were built in total, 28 A1-class trams and 42 A2-class trams marking Comeng’s final single-body tram production before Melbourne transitioned to articulated configurations with the B-class.

    For rolling stock engineers, the A class represents a key bridge between mechanical standardisation and passenger-centred design, a transition that would influence decades of tram procurement policy.

    no image

    This is custom heading element

    In 1982, a change in government reshaped Victoria’s transport manufacturing agenda.

    The incoming Cain Labour Government, under Minister for Transport Steve Crabb, sought to modernise Melbourne’s tram fleet and redefine its visual identity.

    Comeng had already prepared drawings for what would have been the Z4 class, a continuation of the Z3 series. However, Minister Crabb insisted on a tram that would distinguish itself from its predecessors, a design with a wider, flatter front rather than the sharply pointed aesthetic of the Z-class.

    His vision extended beyond aesthetics; he wanted improved passenger accessibility and quicker loading times, leading to the introduction of two large doors between the bogies.

    Thus, the Z4 project evolved into the A Class Tram, a decision that blended political will, industrial capability, and urban transport reform.

    The result was a tram that looked and operated differently, even though beneath its body shell it remained mechanically similar to the Z3.

    no image

    This is custom heading element

    Comeng’s Dandenong factory was at the centre of Melbourne’s rolling stock innovation during the 1980s.

    The company had already built multiple tram series for the Melbourne & Metropolitan Tramways Board (MMTB), and the A class became one of its last major projects before the shift toward articulated trams and corporate restructuring in the late decade.

    • A1 Class: 28 units built between 1983 and 1985 (fleet numbers 231–258).
    • A2 Class: 42 units built between 1985 and 1987 (fleet numbers 259–300).

    Each tram was assembled using welded steel construction with modular electrical equipment sourced from AEG (Germany), including chopper controls, traction motors, and Düwag-pattern bogies.

    The trams were compact, robust, and designed for Melbourne’s existing infrastructure, making them suitable for routes with lower passenger demand or tighter curves.

    no image

    This is custom heading element

    The A Class tram is a three-door bogie saloon design, structurally compact yet powerful enough for intensive urban operation.

    Specification A1-Class
    Builder Commonwealth Engineering (Comeng), Dandenong
    Built 1984–1985
    Units Built 28
    Seating Capacity 42
    Weight (Tare) 22.2 tonnes
    Length 15.01 m
    Width 2.67 m
    Height 3.34 m
    Wheel Arrangement Bo-Bo
    Wheelbase 1800 mm
    Bogie Centres 8500 mm
    Wheel Diameter 660 mm
    Bogies Düwag tandem drive
    Controller Siemens/AEG chopper control
    Traction Motors 2 × AEG ABS 332, 195 kW each

    From an engineering standpoint, these specifications positioned the A class tram as a refined variant of the Z3.

    The same electrical traction systems were retained for parts commonality and simplified maintenance, but improvements were made in door mechanisms, driver ergonomics, and passenger flow management.

    no image

    This is custom heading element

    While the A class reused proven Z3 mechanical systems, engineers faced a notable challenge.

    Fitting all underframe electrical and pneumatic equipment into a shorter chassis. The revised door arrangement, two large step-wells instead of one, reduced the available equipment space beneath the floor.

    To overcome this, Comeng’s engineers restructured the component layout, ensuring the tram remained balanced and maintainable. The electrical gear, air compressors, and control systems were redistributed, demonstrating how incremental innovation could be achieved without redesigning an entire platform.

    From an electrical engineering perspective, the AEG chopper controller represented a milestone. It replaced the older resistance control method, providing smoother acceleration, energy savings, and less mechanical wear on contactors and resistors.

    The result was a tram that performed efficiently across Melbourne’s stop-and-go routes while reducing maintenance intervals.

    This is custom heading element

    The A1-class trams, introduced from 1983 to 1985, embodied the Cain Government’s policy to modernise public transport visually and operationally.

    They were the first trams to adopt a more streamlined, less angular front, giving them a contemporary appearance compared to the utilitarian Z-series.

    Key Features

    • Improved ventilation and airflow through redesigned roof vents.
    • Dual central passenger doors, reducing boarding times at peak hours.
    • AEG-controlled chopper system identical to the Z3, ensuring reliability and parts interchangeability.
    • Trolley pole power collection, later upgraded to pantographs between 1987 and the late 1990s.

    The first A1 tram was delivered on 12 December 1983 and began passenger service on 13 June 1984. These trams quickly became a mainstay on Kew Depot routes, particularly Route 42 (Mont Albert – City) and Route 48 (North Balwyn – Spencer Street).

    A notable engineering variant was tram A1.231, which gained attention when it was painted in chocolate and cream livery in 1995 to celebrate the 75th anniversary of Kew Depot. Although this tram was later destroyed by fire in 2013, it remains one of the most memorable vehicles in Melbourne’s tram heritage.

    no image

    This is custom heading element

    The A2-class trams, built between 1985 and 1987, marked the final evolution of the A platform. While visually almost identical to the A1, the A2 included significant mechanical refinements:

    • Introduction of Hanning & Kahl braking systems, offering more consistent braking performance.
    • A redesigned door-operating mechanism to reduce failures.
    • Delivered pantograph-only from new, eliminating the need for trolley poles.

    These trams were the first Melbourne trams built without provision for conductor consoles, reflecting the network’s shift toward driver-only operation and automated ticketing systems in the following decade.

    Many A2s carried Bicentennial branding due to funding assistance from the Commonwealth Government’s 1988 program, highlighting the political cooperation behind Melbourne’s transport renewal.

    Tram A2.296 received special modification with high-beam headlights, similar to those fitted to the B2-class, allowing engineers to trial illumination standards for light-rail routes. It was the only non-articulated tram to receive this upgrade.

    no image

    This is custom heading element

    Initially, both A1 and A2 trams were concentrated at Kew Depot, but operational needs saw later redeployments. With the opening of the St Kilda and Port Melbourne light-rail lines in 1987, several A2s were allocated to South Melbourne and North Fitzroy depots.

    By the late 1980s, the arrival of the B2-class articulated trams allowed A2s to return to Kew. Throughout the 1990s, they operated predominantly on eastern corridor routes including:

    • Route 42 (Mont Albert – City)
    • Route 48 (North Balwyn – City/Spencer Street)
    • Peak-hour short-workings along Collins and LaTrobe Streets

    For the Chapel Street lines (78 and 79), only pole-equipped A1s could operate until pantograph conversion of the overhead wiring occurred in the late 1990s. The last six A1s (Nos. 231–236) retained trolley poles for nearly two decades, becoming icons of a fading electrical era.

    This is custom heading element

    When Melbourne’s tram network was privatised in August 1999, all A-class trams transferred to Yarra Trams. The operator undertook multiple upgrades:

    • 2005–2007: Replacement of rollsigns with LED destination systems.
    • 2007: Installation of air conditioning in driver cabins to improve occupational comfort.
    • 2017: Integration of automated passenger information systems, aligning them with modern fleet standards.

    From an engineering management viewpoint, these retrofits exemplify the adaptability of the A-class frame and electrical systems. Despite being mid-1980s technology, their robust construction allowed new components to be integrated without compromising performance or safety.

    This is custom heading element

    Understanding the relationship between the Z and A classes is crucial for any rolling stock engineer examining Melbourne’s design lineage.

    Key Differences

    • Body Design: The A class adopted a flat, wider front instead of the Z-class’s pointed nose.
    • Doors: Two large double doors between bogies, improving passenger movement.
    • Ventilation: Enhanced ventilation compared with earlier Z models.
    • Braking: The A2’s Hanning & Kahl brakes provided better modulation.
    • Electrical Systems: Both used Siemens/AEG chopper control and AEG motors.
    • Aesthetic and Ergonomics: The A class marked the first significant design consideration for driver comfort and urban image.

    Mechanically, however, the Z3 and A1/A2 trams share nearly identical bogies, motors, and controllers. For maintenance and spare-part management, this interchangeability proved cost-effective for the MMTB and later Yarra Trams.

    The major evolution lay in passenger experience and external design rather than propulsion technology. Engineers thus classify the A class as an incremental development, not a technological revolution.

    This is custom heading element

    Starting in 2018, the government launched the program to refurbish over 85% of the tram fleet. The scope includes life extensions, deep overhauls, deep cleans, interior, exterior upgrades and system modernisation.

    By 2022, the program had already refurbished 300 trams, with over 150 jobs supported in the supply chain and is widely referred to as the largest tram life-extension and refurbishment program in the world.

    Copamate’s Involvement

    Copamate was selected as a major fabrication and refurbishment partner. Their work includes manufacturing new windows, refurbishing and manufacturing tram doors, tram fibreglass step wells, tram fibreglass seat surrounds, and various tram sheet metal panels.

    Their precision engineering ensures older trams, including A Class trams, can meet modern safety, comfort and accessibility standards while preserving design geometry.

    no image

    This is custom heading element

    Nearly four decades after entering service, the A class trams remain operational across Melbourne’s network. Their longevity is a testament to Comeng’s engineering quality and the strategic foresight of designing a fleet that could be modernised incrementally.

    As of 2020, 69 of the 70 A-class trams remained in service, an exceptional survival rate. Their continued use demonstrates that even with modest capacity, well-engineered rolling stock can serve efficiently for over forty years when maintained and upgraded systematically.

    The A class today represents a crucial engineering case study in lifecycle management and retrofit planning. Rolling stock engineers continue to examine its structure for lessons in fatigue resistance, electrical redundancy, and driver ergonomics.

    The A class tram shows thoughtful standardisation, incremental upgrades and manufacturer collaboration can produce enduring public assets that return value across multiple decades.

    This is custom heading element

    Aspect Z1/Z2 Z3 A1/A2 (A Class)
    Production Years 1975–1979 1979–1983 1983–1987
    Body Design Pointed, angular Refined, still narrow Flatter, wider nose
    Doors Single centre Single centre Two large double doors
    Power Control Camshaft Siemens/AEG chopper Siemens/AEG chopper
    Bogies Early MMTB design Düwag tandem drive Düwag tandem drive
    Brakes Conventional Improved Hanning & Kahl (A2)
    Power Collection Trolley pole Trolley pole Trolley pole → Pantograph
    Driver Comfort Minimal Moderate Enhanced cab environment
    Passenger Flow Constrained Better than Z1/Z2 Much improved
    Visual Identity Sharp Transitional Modernised, flat front

    This is custom heading element

    The A Class Tram is more than a continuation of Melbourne’s Z-class; it is a symbol of political vision meeting mechanical pragmatism. Conceived in the early 1980s amid shifts in government policy, it reflected Victoria’s ambition to present a modern, efficient, and passenger-friendly tram network.

    For engineers, it remains a textbook example of evolutionary design, combining proven mechanics with practical human-centred modifications. For policymakers, it stands as evidence that infrastructure progress does not always demand revolutionary change, sometimes the greatest advancements come from refining what already works.

    Today, the A class continues to serve the people of Melbourne faithfully, a rolling testament to Comeng’s craftsmanship and the foresight of those who demanded better transport for the city. Its engineering integrity ensures that even as new low-floor trams replace older stock, the A Class Tram will remain one of Melbourne’s most respected and enduring machines in urban transport history.

    Read more about rail projects such as the Future Fleet Program in NSW.

    [uncode_block id=”142671″ inside_column=”yes”]
  • Tooling, Fixtures & Jigs Overview | Rail Applications

    Tooling, Fixtures & Jigs Overview | Rail Applications

    [uncode_socials size=”lead”]

    Australia’s commitment to advancing its transport infrastructure is evident in the ambitious rail projects transforming our major cities and regional networks. From the Metro Tunnel in Melbourne to the expansive Sydney Metro, the demand for sophisticated, reliable, and safe rolling stock has never been greater. The production of these modern trains and trams represents a monumental feat of engineering, one where precision is not merely a goal but a fundamental prerequisite for safety and performance. This precision is achieved not by chance, but through the strategic design and application of specialised manufacturing equipment. At the heart of this process lie the often overlooked heroes of production, tooling, fixtures and jigs.

    no image

    For rolling stock engineers striving for micron level accuracy and government leaders responsible for delivering public value and de-risking multi-billion dollar projects, a deep understanding of this equipment is paramount. This overview will provide a comprehensive exploration of tooling, jigs, and fixtures, moving beyond simplistic definitions to deliver an expert perspective on their application in the demanding world of rolling stock manufacturing. We will examine the distinct functions of these devices, explore their application in projects both large and small and articulate their strategic importance in building the next generation of Australia’s rail fleet.

    Tooling, Fixtures & Jigs Fundamentals

    In the complex lexicon of manufacturing, the terms tooling, jigs, and fixtures are frequently used, sometimes interchangeably, leading to a lack of clarity. A precise understanding begins with establishing a correct hierarchy. Rather than being three separate peers, these terms represent a category and its specific subsets. Getting this right is the first step toward appreciating their distinct roles.

    no image

    What is Tooling? The Foundational Concept

    In an engineering context, tooling is the comprehensive, all-encompassing term for the vast array of devices, implements and equipment required to manufacture a product. It is the complete set of purpose-built hardware that enables a production line to transform raw materials into finished components and assemblies. Tooling, jigs & fixtures is the physical interface between the design and the reality. In rolling stock manufacturing, this includes a diverse range of items.

    • Workholding equipment such as jigs and fixtures.
    • Cutting implements like specialised drill bits, milling cutters, and industrial saws.
    • Forming equipment, including press brake dies for bending metal panels and stamping dies.
    • Welding apparatus and robotic end-effectors.
    • Assembly aids, guides, and templates.
    • Inspection and measurement devices, such as go/no-go gauges and calibration masters.

    Essentially, if a device is created specifically to aid in the production of a part without becoming part of the final product, it falls under the broad umbrella of tooling. High quality jigs and tools are the bedrock of any serious manufacturing enterprise.

    What are Fixtures? Providing Precision

    A fixture is a specific type of tooling whose sole purpose is to hold, support, and locate a workpiece in a fixed, repeatable position during a manufacturing process. The key function of a fixture is to establish a known and rigid frame of reference for the workpiece. The manufacturing process is then performed around it, with the machine, for example a CNC gantry mill or a robotic welder, using its own coordinate system to interact with the fixtured part.

    Consider the assembly of a train car’s primary chassis. This immense structure is locked into a massive fixture that holds every structural member in its exact, predetermined location. When robotic welders then move in to join the components, they are guided by their own programming, confident that the fixture has presented the workpiece in precisely the right orientation. The fixture does not guide the welding tool, it simply holds the work. This is the defining characteristic of all jigs and fixtures.

    no image

    What are Jigs? Guiding the Process

    A jig is a more specialised type of tooling that performs two functions simultaneously. Like a fixture, it holds, supports, and locates the workpiece. However, a jig possesses an additional, critical feature, it also guides the cutting tool to the correct location on the workpiece.

    A classic example is a drill jig. Imagine a series of critical mounting holes must be drilled into a bogie frame component. A custom drill jig, a type of engineering jig, would be clamped onto the component. This jig would contain hardened steel bushings precisely located where the holes need to be. The operator then simply inserts the drill bit through these bushings. The jig’s bushings guide the drill bit, eliminating the need for manual marking and ensuring every hole is perfectly positioned, perpendicular, and identical across hundreds of parts. The jig controls the tool’s path, guaranteeing extreme accuracy and repeatability with minimal reliance on operator skill.

    The Core Distinction Summarised

    Feature Fixture Jig
    Primary Function Holds, supports, and locates the workpiece. Holds, supports, locates the workpiece, AND guides the tool.
    Tool Control The machine or operator controls the tool’s path. The jig itself controls the tool’s path.
    Common Processes Welding, milling, inspection, assembly. Drilling, reaming, tapping, boring.
    Complexity Generally higher, especially for large assemblies. Can range from simple plates to complex box jigs.

    The Scale of Engineering Jigs & Fixtures in Rolling Stock Manufacturing

    The sheer scale of rolling stock necessitates an equally impressive scale in its manufacturing jigs and tools. The requirements range from colossal structures that dwarf human operators to small, handheld devices that ensure the perfection of the smallest detail.

    Large Scale Tooling, Assembling the Giants

    The assembly of a multi-tonne train car is a symphony of heavy fabrication, where maintaining dimensional stability is a monumental challenge. This is where large scale tooling jigs and fixtures become indispensable.

    • Car Body and Underframe Fixtures: These are arguably the most critical pieces of tooling in a rolling stock plant. An underframe fixture, for instance, might be over 20 metres long, constructed from heavy, stress-relieved steel sections. Its purpose is to securely hold all the longitudinal and transverse beams, bogie mounting points, and coupler housings in a precise 3D orientation while they are welded together. These are advanced welding jigs that must counteract the immense thermal distortion caused by welding, often incorporating powerful hydraulic clamping systems and integrated laser tracking points for continuous dimensional verification. Without such a fixture, the cumulative errors from welding would render the underframe unusable.
    • Side Wall and Roof Fixtures: Similar in principle, these large fixtures hold the panels, window frames and structural ribs that form the car body. They ensure that every side wall is a mirror image of the other and that the roof will integrate seamlessly with the rest of the structure. These fixtures often have features that allow them to be tilted or rotated, providing welders and assemblers with safe and ergonomic access to all joints.

    The design of these large scale engineering jigs is a specialised field in itself, requiring extensive Finite Element Analysis (FEA) to ensure they can support the weight of the components and resist manufacturing forces without deflecting.

    no image

    Small Scale Tooling

    While the giant fixtures capture the imagination, the success of a rolling stock project equally depends on an army of smaller jigs and tools. These devices ensure that the principle of quality is applied at every level of the assembly process.

    • Sub-Assembly Jigs and Fixtures: Interior components like seating modules, luggage racks, and driver’s cabin consoles are all built on their own smaller, dedicated jigs and fixtures. This ensures that each sub-assembly is a perfect, interchangeable unit that can be quickly and accurately installed into the main car body.
    • Drilling and Installation Jigs: The attachment of myriad brackets, electrical conduits, and pneumatic lines is facilitated by small, often portable, engineering jigs. A simple template jig ensures that the mounting holes for a passenger grab rail are drilled in the exact same location on every single car, guaranteeing fleet uniformity and simplifying maintenance down the line.
    • Welding Jigs for Small Components: The fabrication of brackets, suspension components, and other small parts relies on dedicated welding jigs. These small fixtures hold the pieces in the correct orientation for a perfect weld, improving quality and dramatically increasing throughput compared to manual tacking and measuring.

    These smaller tools prevent small errors from cascading into major problems, upholding the principle of interchangeability which is critical for the vehicle’s entire operational life.

    no image

    Jigs & Tools Strategic Importance for Engineers and Government Leaders

    The investment in a robust suite of jigs and tools is not merely an operational expense, it is a profound strategic decision with far-reaching implications for both the engineers on the ground and the government leaders overseeing the project.

    Jigs & Fixtures for The Rolling Stock Engineer

    For the engineers tasked with delivering a safe and reliable fleet, high quality tooling is non-negotiable. It is the physical embodiment of their design intent.

    • Precision and Tolerance: Rolling stock operates under extreme conditions. The alignment of bogies, the integrity of welds, and the interface between cars are safety-critical. Jigs and fixtures are the only way to hold the tight geometric tolerances required over large, complex fabrications, ensuring the vehicle performs as designed.
    • Repeatability and Quality Control: A contract may call for dozens or hundreds of identical vehicles. Tooling guarantees that the first car off the line is dimensionally identical to the last. This consistency simplifies quality control, streamlines the approvals process, and ensures a uniform standard across the entire fleet.
    • Efficiency and Process Optimisation: Well,designed engineering jigs drastically reduce assembly and fabrication times. They remove ambiguity from the process, reduce the cognitive load on technicians, and minimise the costly rework associated with human error.
    no image

    Jigs & Fixtures for Department of Transport

    For government and transport authority leaders, the benefits of proper tooling translate directly into project security and public value.

    • De-risking Major Capital Projects: The largest risk in a fixed,price manufacturing contract is unforeseen delays and cost overruns. Investing in or specifying high-quality jigs and tools at the outset is a powerful de-risking strategy. It front-loads quality into the process, preventing cascading failures and ensuring the project stays on schedule and on budget.
    • Ensuring Long-Term Asset Value: Rolling stock is a 30 year plus investment. Vehicles built with precise tooling are easier and cheaper to maintain, repair, and upgrade. When a component needs replacing a decade from now, the principle of interchangeability guaranteed by the original tooling ensures that a standard spare part will fit perfectly, minimising vehicle downtime.
    • Fostering Sovereign Capability: Mandating and investing in advanced tooling design and fabrication within Australia stimulates the local engineering and manufacturing ecosystem. It builds a national skills base in high value manufacturing, a sovereign capability that is critical for both transport and defence industries. It transforms a procurement exercise into a nation building opportunity.

    Final Notes

    The world of jigs and tools in rolling stock manufacturing is one of engineering rigour, immense scale, and strategic foresight. From the colossal fixtures that cradle an entire train car to the simple drill jigs that perfect a single bracket, this equipment is the silent enabler of modern rail transport. It provides the certainty of position, the guarantee of quality, and the foundation of efficiency.

    For the engineers who build our trains and the leaders who fund them, understanding this world is essential. Proper investment in tooling jigs, welding jigs, and a comprehensive suite of manufacturing aids is not an optional extra. It is the foundational investment in the safety, quality, and long,term value of our nation’s most vital transport infrastructure. It is how we ensure that our ambition for a world class rail network is forged into a physical, lasting reality.

    [uncode_block id=”142671″ inside_column=”yes”]
  • Melbourne Metro Tunnel Project | 2025 Update

    Melbourne Metro Tunnel Project | 2025 Update

    [uncode_socials size=”lead”]

    Melbourne’s Metro Tunnel Project, set to open 2025 is the largest rail infrastructure project in the history of Melbourne’s rail network since the City Loop in 1982. The project includes twin 9km tunnels under Melbourne’s CBD that will reduce the stress on train transport related to the City Loop so more trains can travel across the city.

    Victoria’s Big Build

    no image

    Melbourne Metro Tunnel Benefits

    The rail line will extend from Sunbury in the west to Cranbourne/Pakenham in the south east using High Capacity Metro Trains with local content rolling stock; the stations are currently underway for the 2025 opening.

    The Melbourne Metro Tunnel will help move more people in and out of the city with less disruptions. The project features a cross-city rail tunnel with the construction of 5 new underground stations in the City of Melbourne at Arden, Parkville, State Library, Town Hall and Anzac.

    The new Metro Tunnel station in North Melbourne is part of plans for urban renewal in the broader Arden-Macaulay precinct.

    The new station will improve access to some of Melbourne’s most popular destinations including the State Library of Victoria, RMIT University and the Queen Victoria Market.

    The new station will significantly improve access to the St Kilda Road precinct and key Melbourne landmarks, reducing pressure on the road and tram network to the south of the CBD.

    Victoria’s Big Build

    no image

    Where Are The New Metro Tunnel Stations Located?

    This is custom heading element

    no image

    This is custom heading element

    no image

    This is custom heading element

    no image

    This is custom heading element

    no image

    This is custom heading element

    no image

    Melbourne Metro Tunnel Project Trial & Testing

    On Saturday 21st of June the Victorian Government trialled Metro Tunnel services along the full length of the Sunbury and Cranbourne/Pakenham lines.

    The Metro Tunnel Project teamed up with Australia’s national science agency CSIRO, who conducted crucial smoke testing, ensuring our ventilation systems are ready to perform in emergency situations.

    By generating ‘hot smoke’ with specialised equipment, we simulated real fire conditions and monitored how the smoke behaves. This helps us fine-tune extraction systems and improve emergency preparedness at the station.

    Metro Tunnel Project LinkedIn

    no image

    Melbourne Metro Tunnel Current Progress

    Station construction: 3 of the 5 new stations being Arden, Parkville, and Anzac are complete, with the remaining 2 being State Library and Town Hall nearing completion.

    Testing and Commissioning: Testing and trailing is underway, including test trains through the tunnel, simulating normal operating conditions. This involves testing signalling systems, train operations, and station procedures.

    Staff Training: Metro Trains Melbourne staff are being trained to familiarise themselves with the new stations before the opening.

    Opening Date: The Victorian State Government is considering opening the Melbourne Metro Tunnel with limited access to tunnels. The opening date will be announced once all construction, testing, and training are complete.

    no image

    When Will The Metro Tunnel Open?

    The Metro Tunnel is set to open in 2025, a year ahead of plan.

    3 of the 5 Metro Tunnel stations have been completed, and the other two are approaching completion.

    Trial operations have started and will continue until the Metro Tunnel opens. Many processes and procedures are required to operate the new rail line, including testing timetabled services with drivers and station officials in a dress rehearsal to ensure that everything is ready for customers.

    Once station construction is completed, an opening date will be announced, as well as all of the testing, training, and planning required to safely operate this new section of the rail network.

    no image

    Final Notes

    The Melbourne Metro Tunnel represents a transformative leap in Victoria’s public transport infrastructure. With its planned opening now set for 2025 a full year ahead of schedule. This project is poised to reshape the way commuters move across the metropolitan network, by redirecting key lines through dedicated twin tunnels and introducing five new underground stations. The Metro Tunnel will significantly relieve pressure on the existing City Loop system and unlock capacity for future population and transport growth.

    More than just a rail upgrade, the project reflects the integration of modern engineering, high-capacity rolling stock, and urban renewal. From improved connectivity to major precincts like Parkville’s biomedical hub and the St Kilda Road arts and business district, to the use of cutting-edge safety systems tested in partnership with agencies like CSIRO, every aspect of the project is designed to deliver long-term value to Melbourne’s transport network.

    As trial operations continue and final stages of testing and staff preparation advance, the Metro Tunnel is a clear example of how major infrastructure, when properly planned and executed, can deliver on its promise to improve daily life for thousands of commuters. With three stations completed, two nearing finalisation, and rigorous commissioning underway, Melbourne is closer than ever to welcoming a new era of fast, frequent and reliable rail transport.

    Learn more about the Future Fleet Program in NSW and the Queensland Train Manufacturing Program.

    [uncode_block id=”142671″ inside_column=”yes”]
  • Laser Cutting Materials

    Laser Cutting Materials

    [uncode_socials size=”lead”]

    When precision, speed and material quality are critical, laser cutting is the manufacturing process that delivers consistent results across a wide range of applications. From rail and defence to infrastructure, automotive and pipeline sectors, laser cutting remains one of the most reliable methods for achieving intricate profiles and high tolerance cuts.

    At Copamate, we specialise in precision laser cutting across a diverse range of laser cutting materials, offering industry-grade capabilities backed by engineering expertise and manufacturing excellence. This guide outlines the materials we work with, their characteristics and the maximum thicknesses we can process to meet your project needs.

    Aluminium Laser Cutting (Up to 10mm)

    Aluminium is a highly versatile material commonly used across sectors that demand lightweight, corrosion-resistant and strong components. Due to its high thermal conductivity and reflectivity, aluminium requires specialised handling and high-powered laser settings to ensure clean, burr-free cuts.

    At Copamate, we cut aluminium sheets up to 10mm thick using advanced fibre laser systems that ensure minimal heat-affected zones and excellent edge quality.
    Applications: Automotive heat shields, aerospace brackets, control panels, housing enclosures and electrical components.

    Advantages:

    • High strength-to-weight ratio
    • Excellent corrosion resistance
    • Smooth finish for anodising or coating

    Industries: Automotive, Rail, Defence, Electronics, Aerospace

    Aluminium 10mm

    Steel Laser Cutting Materials (Sheet Steel)

    Laser cutting steel sheet remains one of the most requested services in industrial manufacturing due to steel’s affordability, strength and ease of fabrication. Copamate handles both mild steel and stainless steel, each offering unique benefits for specific applications.

    Mild Steel Laser Cutting (Up to 12mm)

    Mild steel, also known as carbon steel, is highly machinable and cost-effective, making it ideal for structural components, enclosures and heavy-duty brackets.

    Our fibre laser machines can cut mild steel up to 12mm thick with fast turnaround times and repeatable accuracy.
    Applications: Base plates, brackets, frames, equipment mounts
    Advantages:

    • Affordable and readily available
    • Easy to weld and machine
    • Strong and formable

    Industries: Infrastructure, Mining, Automotive, Rail

    Mild Steel 12mm

    Stainless Steel Laser Cutting (Up to 10mm)

    Stainless steel is valued for its superior corrosion resistance and high-temperature tolerance. It is often used in critical environments where hygiene or exposure to moisture is a concern.

    Laser cutting stainless steel requires tighter control due to reflectivity and alloy composition. Our systems are calibrated for cutting stainless up to 10mm with smooth, dross-free edges.

    Applications: Exhaust systems, food processing components, railcar interiors, pump housings

    Advantages:

    • Corrosion-resistant
    • Aesthetic finish with optional polishing
    • Heat-resistant and hygienic

    Industries: Rail, Defence, Food Manufacturing, Infrastructure

    Stainless Steel 10mm

    Brass Laser Cutting (Up to 8mm)

    Brass offers excellent machinability, thermal conductivity and aesthetic appeal, often chosen for components requiring both function and finish.

    Due to its reflectivity, precision laser systems are essential. We process brass sheets up to 8mm thick with minimal oxidation and post-processing needs.

    Applications: Valve plates, decorative panels, electronic fittings

    Advantages:

    • Attractive golden finish
    • Corrosion-resistant
    • Good conductor of heat and electricity

    Industries: Rail, Plumbing, Electrical, Architectural

    Brass 8mm

    Copper Laser Cutting (Up to 8mm)

    Copper’s high electrical and thermal conductivity make it indispensable for energy transfer and electrical components. Laser cutting copper is technically complex due to its high reflectivity and conductivity.

    Copamate uses advanced laser optics to safely and efficiently cut copper sheets up to 8mm thick.
    Applications: Busbars, grounding strips, heat sinks, contact terminals

    Advantages:

    • Exceptional conductivity
    • Corrosion-resistant
    • Anti-microbial properties

    Industries: Power Distribution, Rail Signalling, Defence Electronics

    Copper 8mm

    Manganese Laser Cutting (Up to 7mm)

    Manganese steel is known for its extreme impact resistance and high abrasion tolerance, making it essential for wear-resistant components in heavy industries.

    Laser cutting manganese requires precision and speed to minimise thermal distortion. We handle manganese sheets up to 7mm thick.

    Applications: Crusher liners, rail crossings, bucket wear plates

    Advantages:

    • Impact and abrasion resistant
    • Work-hardening properties
    • Long service life in high-wear environments

    Industries: Rail, Mining, Defence

    Manganese 7mm

    Galvanised Steel Laser Cutting (Up to 10mm)

    Galvanised steel includes a protective zinc coating to prevent rusting. It is widely used in outdoor, moisture-prone or corrosive environments.

    Laser cutting galvanised steel requires clean extraction to avoid zinc vapour buildup. Copamate cuts galvanised sheets up to 10mm with controlled ventilation systems for safe and efficient operation.

    Applications: Ducting, fencing components, vehicle bodies, trays

    Advantages:

    • Corrosion-resistant
    • Cost-effective
    • Easy to fabricate and weld

    Industries: Infrastructure, Rail, Automotive, HVAC

    Galvanised Steel 10mm

    Zincalume Laser Cutting (Up to 10mm)

    Zincalume combines zinc, aluminium and silicon for long-lasting surface protection and structural integrity. It’s ideal for architectural and industrial applications requiring enhanced corrosion resistance and longevity.

    We offer laser cutting for Zincalume sheet up to 10mm thick with smooth, reflective edges ideal for coatings or post-processing.

    Applications: Roofing, flashing, brackets, outdoor enclosures

    Advantages:

    • Long lifespan
    • Excellent corrosion resistance
    • Low maintenance material

    Industries: Construction, Infrastructure, Rail

    Zincalume 10mm

    Why Copamate for Laser Cutting?

    Copamate offers engineering-grade laser cutting services, tailored for high-performance industries that demand precision, compliance and material traceability.

    Our in-house manufacturing capabilities, coupled with a team of technical specialists, allow us to deliver complex cutting jobs at scale, on time and with industry-specific requirements in mind.

    Key Benefits:

    • Cutting capability up to 12mm on multiple materials (soon to be upgraded)
    • Laser cutting technology for improved efficiency and sustainability
    • Australian-based support with ISO 9001, IRIS and AS9100 compliant manufacturing
    • Expertise in interpreting CAD and engineering drawings
    • Short lead times and fast quoting

    Our clients in rail, defence, automotive, and infrastructure rely on us for essential components that meet the highest quality and durability standards.

    Final Notes

    Understanding the properties, benefits and limitations of various materials is key to achieving precision and performance in laser cutting applications. Whether you are working on a rail infrastructure upgrade, fabricating components for defence, or developing enclosures for automotive systems, choosing the right material and supplier can determine both the durability and cost-effectiveness of your project.

    Copamate brings technical proficiency, quality assurance and customer-focused service to every laser cutting task. With the ability to process an extensive range of materials up to 12mm thick, we are equipped to handle the demands of Australia’s leading industries. Our strength lies in blending manufacturing capabilities with engineering insight, helping customers achieve consistent results across every application.

    When material choice matters and precision cannot be compromised, Copamate is the partner manufacturers trust.

    [uncode_block id=”142671″ inside_column=”yes”]
  • Future Fleet Program Overview | Top 5 Benefits

    Future Fleet Program Overview | Top 5 Benefits

    [uncode_socials size=”lead”]

    The NSW Government aims to revamp the rail manufacturing landscape in Australia. With the announcement of the Future Fleet Program, New South Wales has established a local content target of 50% for this new rail project up until the 2050s.

    The Hon Jo Haylen MP, Minister for Transport expressed the pain points of overseas rail manufacturing mentioning the quality infrastructure isn’t readily available in a timely manner.

    The current rail network in NSW faces issues such as too many different types of trains running and requiring maintenance through the NSW Transport systems. With this in mind the NSW Government looks to plan effectively, consult widely and listen to industry and trail users.

    NSW Transports Next Step

    With that being said the Government’s Future Fleet Program represents the next big step in rail procurement. It is a multi-decade fleet transformation comprising approximately 1500 new cars.

    One of the NSW Government’s objectives is to build great rolling stock that is capable of adaptation and improvement over the lifecycle, with less reliance on buying completely new trains from an entirely different country every five to ten years.

    The first phase of procurement is set to be for the Tangara fleet of suburban passenger trains by March 2027, with a 50% local content target to be included in the contract.

    What is The Future Fleet Program?

    The Future Fleet Program comprises 1,500 car bodies split up into 5 different train projects. The Taranga fleet by the 2030s, the Millennium fleet in the 2040s, the OSCar by the 2040s, the Waratah A by the 2050s and the Waratah B Series 2 by the 2050s.

    The NSW Government has a goal to start procurement for a replacement fleet of the Tangara trains by 2027, with a local content goal of minimum 50%. This will ensure Australian and NSW-based businesses and jobs are engaged in designing, building, and maintaining the fleet.

    Building capacity has started with the Tangara Life Extension underway with the project seeing almost 450 cars make their way through a major overhaul in the future. The current cost of this project is about $450 million which is set to improve the Tangara fleet and time to plan and cost the trains for the future.

    With the long term in mind, the NSW Government wants to establish a strong legacy of skilled rail manufacturing jobs and apprenticeships in a reestablished Australian rail manufacturing industry.

    Rail Manufacturing Supply Chain

    no image

    Types of Trains

    • Tangara – 445 cars
    • Millenium – 140 cars
    • OSCar – 221 cars
    • Waratah A – 624 cars
    • Waratah B Series 2 – 326 cars

    The long Term Suburban Passenger Fleet Replacement Pipeline, based on nominated design life.

    no image

    Future Fleet Program Benefits

    1. Made Locally for NSW
    The New South Wales Government will invest in a suburban passenger fleet with at least 50% Australian and New Zealand content, generating opportunities for NSW businesses, jobs, and apprenticeships along the value chain.

    2. Enhance passenger network customer outcomes
    The New South Wales government will invest in a contemporary suburban fleet that is accessible to all passengers and caters to a variety of passenger and travel types throughout the suburban network.

    3. Design Innovation and Standardisation
    The New South Wales government will invest in creative and adaptable fleet designs that satisfy passenger needs while standardising base platform components to allow for economies of scale in manufacturing as well as operational and maintenance efficiency.

    4. Net Zero and Circular Economy
    The New South Wales government will invest in a fleet that meets Nett Zero targets, incorporates Circular Economy concepts throughout the asset lifecycle, and decarbonises the fleet through the use of recycled materials.

    5. Operations and Maintenance Efficiency
    The New South Wales government will invest in a fleet that supports more efficient operations and maintenance methods, as well as help the workforce implement cutting-edge maintenance techniques.

    What is the current status of the Future Fleet Program?

    NSW Transport is currently in consultation with the newly established Transport Asset Manager of NSW (TAM). Currently the Preliminary Business Case has been finalised for suburban passenger fleet replacements and will be seeking direction from the NSW Government on the delivery strategy and local content options in the coming months.

    This is likely to shape the development of a full business case to proceed for the procurement process and meet the local content target.

    2025 Scope
    Confirmation of preferred asset lifecycle for current suburban passenger fleets – Initial indication of order volume for first double deck suburban passenger train replacements – Design scoping with industry for New South Wales next generation of double deck suburban passenger trains

    What is the Future Fleet Program’s Next Step?

    Stakeholders can expect the following activities as the Future Fleet Programme collaborates with local industry to provide NSW’s next generation of suburban passenger trains.

    2025
    Industry and suppliers can contribute to the development of the Future Fleet Programme through various activities.

    Initial order volume for new suburban passenger train replacements. Design interaction with industry for NSW’s next generation of double deck passenger trains.

    2026
    Subject to a future NSW Government investment decision, the first orders for suburban passenger trains will be placed.

    2027-28
    The first order contract for the next generation of passenger trains and related infrastructure has been awarded.

    no image

    Final Thoughts

    The Future Fleet Program is a significant upgrade to the NSW rail infrastructure network, with a focus on local rail manufacturing for the foreseeable future. So far the project seems to be on track with 1,500 new cars to be manufactured over the span of 25 years.

    As the project starts to approach the procurement stage the industry looks to reduce the number of redundant trains and improve the overall network.

    Learn more about Australian rail projects such as the Metro Tunnel Project in Melbourne, the Queensland Train Manufacturing Program and A Class Tram.

    [uncode_block id=”142671″ inside_column=”yes”]
  • G-Class Tram | Next Generation Tram Design & Development

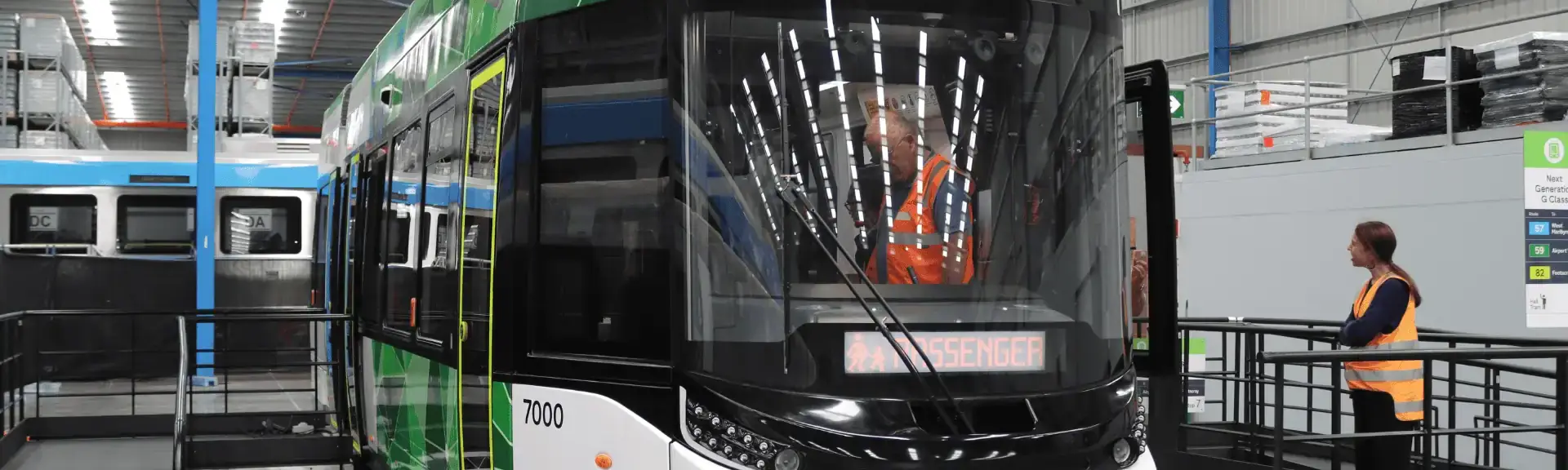

    G-Class Tram | Next Generation Tram Design & Development

    [uncode_socials size=”lead”]

    The next generation of Melbourne’s trams known as the G Class Tram is being manufactured in Dandenong and the first trams are already on the tracks for testing in 2025.

    This is custom heading element

    This is the largest investment in locally made trams in Australia’s history. They will set a new standard for modern public transport by delivering a more comfortable, accessible and energy-efficient journey for passengers. The project requires 65 per cent local content and will support up to 1900 local jobs, including those in the wider economy and we are proud to be a part of this.

    no image

    This is custom heading element

    Copamate is proud to be contributing to the project by delivering custom jigs and fixtures to help with the assembly of the next generation G-Class Trams. These custom jigs and fixtures have been manufactured with 100% Australian local content using in-house capabilities of design, CNC machining, fabrication, painting and assembly.

    no image

    Read more about rail projects such as the Future Fleet Program in NSW.

    [uncode_block id=”142671″ inside_column=”yes”]
  • Types of CNC Machines & Their Role in Aerospace, Automotive & Rail

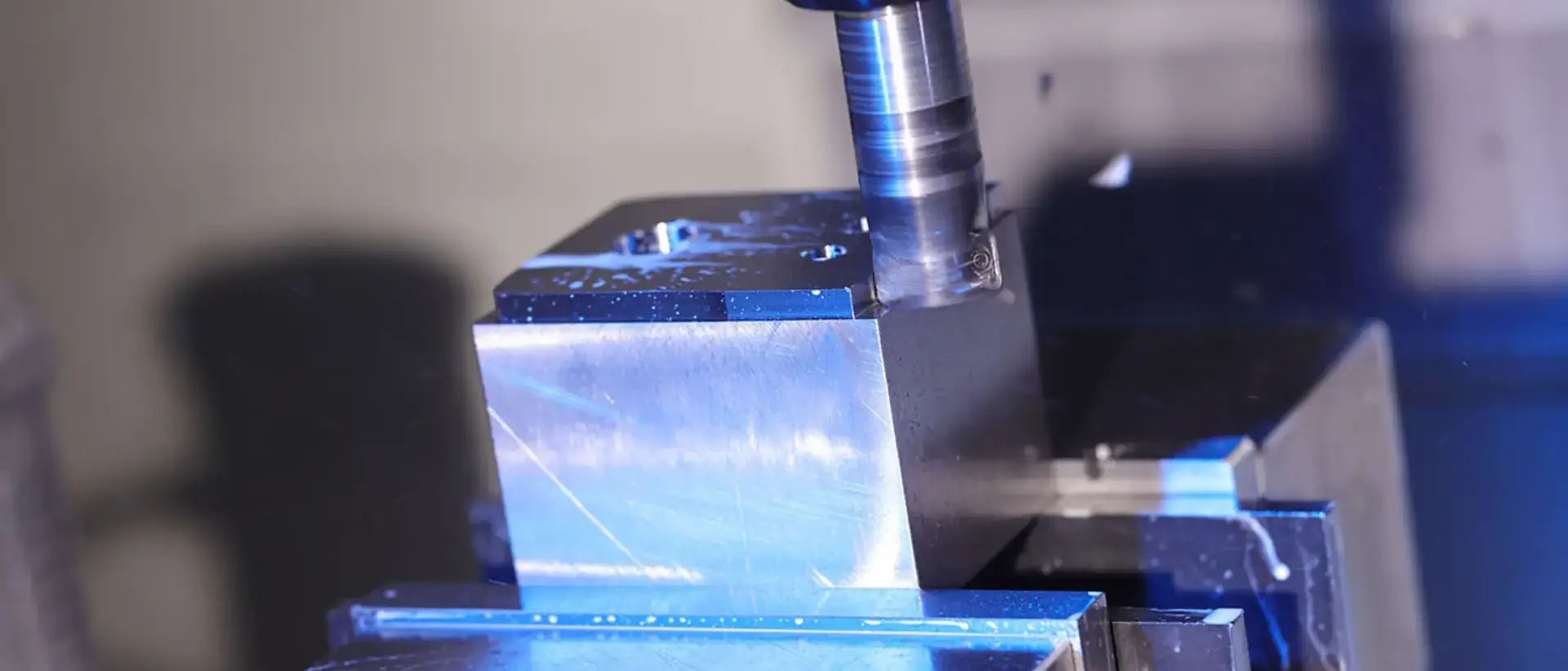

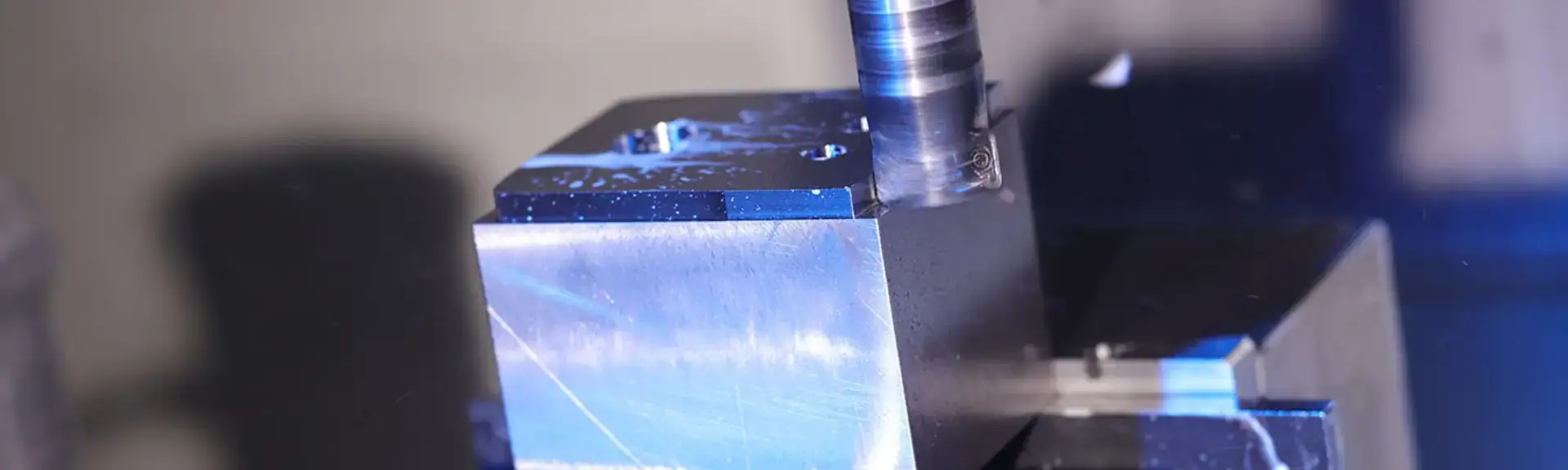

    Types of CNC Machines & Their Role in Aerospace, Automotive & Rail

    [uncode_socials size=”lead”]

    Computer Numerical Control (CNC) machines have revolutionised manufacturing by offering unparalleled precision and automation. CNC machining is essential for producing highly intricate components across a variety of industries, including aerospace, automotive, and rail. CNC systems operate based on pre-programmed sequences of control commands that guide automated machining processes. Whether it’s a simple lathe or a sophisticated multi-axis CNC machine, the precision and consistency offered by CNC technology are indispensable in producing high-quality components.

    As industries continue to evolve, the need for even more precise tolerances, a wider range of materials, and faster production times has driven the ongoing advancement of CNC machinery. This guide explores the different types of CNC machines, how they’re applied in real-world manufacturing, and why they’re essential in industries like aerospace, automotive, and rail.

    This is custom heading element

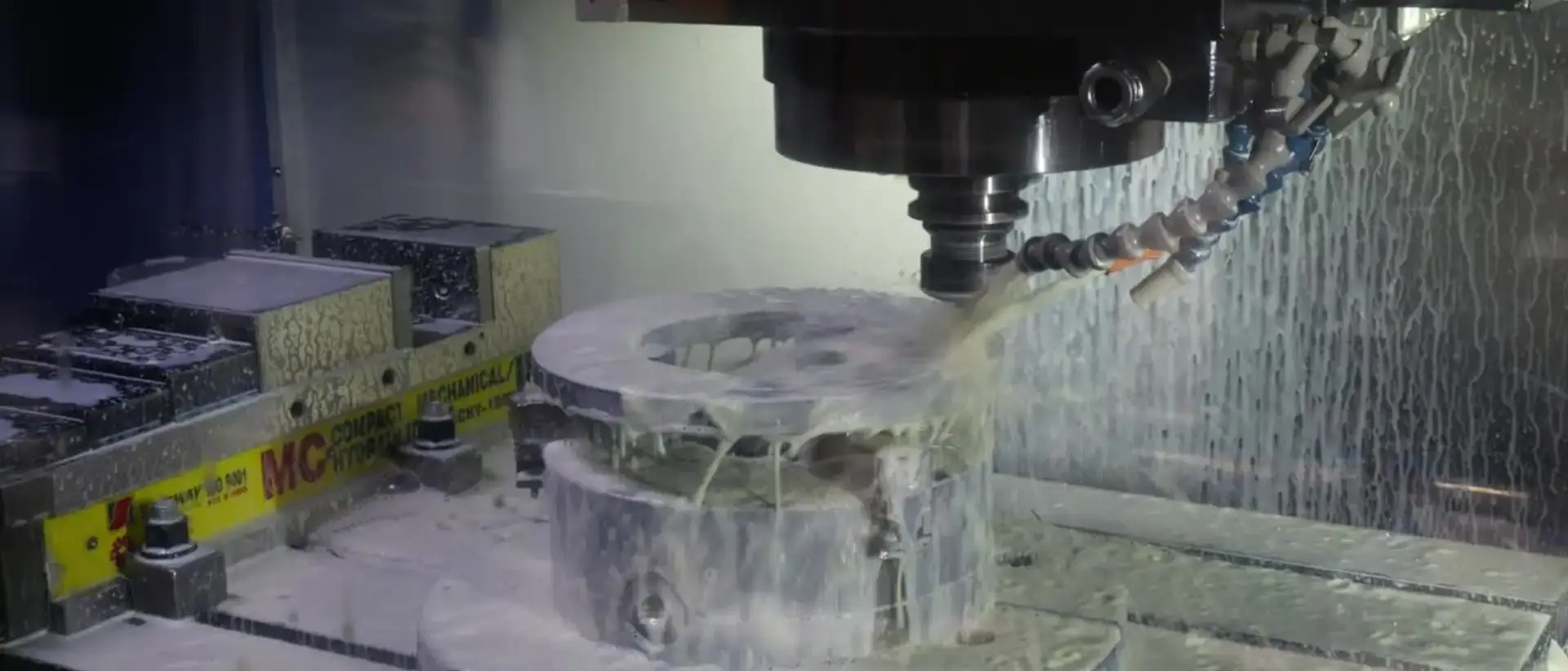

    Precision machining is critical in sectors like aerospace, automotive, and rail, where even the slightest deviations can have serious consequences. In aerospace, the tolerances can be as tight as ±0.0001 inches, meaning that a single misstep in manufacturing could compromise safety. Similarly, the automotive industry requires the mass production of parts that are identical in every way to ensure reliability, while the rail industry depends on CNC technology for producing durable components with consistent performance.

    Aerospace Industry

    • Tolerances: ±0.0001 to ±0.0005 inches
    • Materials: Titanium, aluminum, Inconel, composites
    • Typical Components: Engine mounts, turbine blades, housings, brackets, seat structures

    Automotive Industry

    • Tolerances: ±0.001 to ±0.005 inches
    • Materials: Steel, aluminum, polymers
    • Typical Components: Engine parts, camshafts, brake systems, suspension components

    Rail Industry

    • Tolerances: ±0.005 to ±0.010 inches
    • Materials: Cast iron, mild steel, alloys
    • Typical Components: Wheel sets, axle boxes, brake discs, structural elements

    The need for exacting standards in each of these industries further underscores the importance of CNC machines, which provide repeatable, high-precision results that are essential for manufacturing safe and reliable components.

    no image

    This is custom heading element

    This is custom heading element

    2-axis CNC machines typically operate on the X (horizontal) and Z (vertical) axes, making them ideal for turning cylindrical parts. In these systems, the workpiece is rotated while the cutting tool moves along these two axes, primarily used for basic operations like drilling, threading, and boring.

    Applications:

    • Cylindrical parts (e.g., shafts, pins)
    • Threading and boring operations
    • Simple drilling for symmetrical parts

    Industries:

    • Automotive: Axles, bushings
    • Rail: Simple shafts, pins

    Tolerances:

    • ±0.005″ to ±0.010″

    Diameter Ranges:

    • 5 mm to 300 mm

    Limitations:

    • Lacks the ability to perform side or angled machining.
    • Best suited for simpler, symmetrical parts.
    no image

    This is custom heading element

    3-axis CNC machines add a vertical Z-axis to the 2-axis system, enabling milling, drilling, and contouring of more complex shapes. These machines can perform more intricate operations on different surfaces.

    Applications:

    • Milling slots, holes, and cavities
    • 3D contours in dies and molds

    Industries:

    • Automotive: Gearboxes, cylinder heads
    • Aerospace: Housing units, structural parts
    • Rail: Brake calipers, suspension parts

    Tolerances:

    • ±0.001″ to ±0.005″

    Part Sizes:

    • Up to 1000 mm in length

    Advantages:

    • Greater flexibility for complex surfaces and 3D machining.
    • Suitable for a wide range of components across multiple industries.
    no image

    This is custom heading element

    4-axis cnc machining allows the machine to rotate the part, enabling it to be machined on multiple sides without manual repositioning. This system adds enhanced speed and versatility to machining processes.

    Applications:

    • Multi-sided machining
    • Spiral milling and curved surfaces
    • Parts that require machining around a central axis

    Industries:

    • Aerospace: Airfoil sections
    • Automotive: Engine blocks, transmission parts
    • Rail: Wheelset hubs

    Tolerances:

    • ±0.0005″ to ±0.002″

    Advantages:

    • Increased speed and efficiency
    • Reduces human error by automating the rotation of parts
    no image

    This is custom heading element

    Adding tilting to the rotational axis, 5-axis CNC machines provide even more flexibility, allowing the cutting tool to move along multiple axes simultaneously. This results in higher precision and the ability to handle complex geometries in a single setup.

    Applications:

    • High-precision aerospace components
    • Complex automotive molds and valves
    • Rail braking systems requiring angled drilling

    Industries:

    • Aerospace: Turbine blades, structural components
    • Automotive: Fuel injection systems
    • Rail: Braking discs, connection systems

    Tolerances:

    • As tight as ±0.0001″

    Advantages:

    • Single-setup machining eliminates the need for repositioning, which reduces errors.
    • Capable of machining all sides of a part, improving efficiency.

    This is custom heading element

    6-axis CNC machines incorporate an additional axis, allowing for more dynamic tool movement. These machines are ideal for producing intricate designs and enhancing speed and cycle times.

    Industries:

    • Aerospace: Complex geometries for turbine parts
    • Automotive: Prototype and EV components
    • Rail: Safety-critical assemblies

    Applications:

    • Aerospace turbine rotors
    • Engine mounts and structural parts
    • Rail couplers and dampers

    Advantages:

    • Greater efficiency in manufacturing.
    • Capable of complex multi-angle machining in a single run.
    no image

    This is custom heading element

    7-axis CNC machines offer the ultimate flexibility in machining, allowing parts to be rotated, tilted, and translated in nearly all possible directions. These systems are ideal for producing ultra-complex geometries and are often used in robotic CNC arms.

    Applications:

    • Aerospace nozzle assemblies
    • High-end automotive parts (e.g., F1 components)
    • Medical implants (e.g., orthopaedic parts)

    Industries:

    • Aerospace: Missile guidance components
    • Medical: Orthopaedic implants
    • Automotive: Advanced high-performance components for sports and electric vehicles

    Advantages:

    • Unmatched flexibility and precision
    • Extreme accuracy and repeatability, ideal for complex, low-volume production
    no image

    This is custom heading element

    Different CNC machines use various control systems to guide their movements. These systems are critical to the type of operations they can perform and are tailored to meet specific needs in manufacturing.

    Point-to-Point Positioning Control

    • Ideal for applications where tools need to move from one point to another without considering the path in between.
    • Commonly used in drilling and hole punching.

    Straight Cut Positioning Control

    • Used in processes that require straight-line movements, such as laser cutting or plasma cutting.
    • Perfect for sheet metal fabrication where precise straight cuts are needed.

    Contouring Path CNC Control

    • Enables continuous movement along complex paths, making it ideal for mold-making and 3D surface creation.
    • Widely used in aerospace machining for intricate component designs.

    This is custom heading element

    CNC machines are capable of handling a wide range of materials, from soft polymers to hard metals and composites, making them versatile for various industries.

    Commonly Machined Materials

    • Metals: Aluminum, titanium, stainless steel, Inconel
    • Polymers: PEEK, Nylon, Delrin
    • Composites: CFRP (Carbon Fiber Reinforced Polymer), GFRP (Glass Fiber Reinforced Polymer)
    • Others: Brass, copper, bronze

    Part Size and Diameter Ranges

    • Lathes: Capable of machining parts with diameters from 5 mm to 500 mm.
    • Milling Machines: Can handle parts up to 1000 mm in length.
    • High-Axis Machines: Suitable for parts with highly irregular geometries, extending up to 2 meters or more.

    This is custom heading element

    Aerospace

    • Demands parts with tight tolerances and lightweight materials.
    • 5-, 6-, and 7-axis machines dominate for machining high-complexity components such as turbine parts, airframes, and hydraulic systems.

    Automotive

    • Requires the mass production of reliable, identical components.
    • Uses 2–5 axis machines for parts like engine blocks, brake systems, and suspension components.
    • High repeatability and speed are necessary for cost-effective production.

    Rail

    • Focuses on producing medium to large components like wheel assemblies and suspension systems.
    • 3–5 axis machines are commonly used for producing components with durability and cost-efficiency in mind.
    no image

    This is custom heading element

    Factors to Consider:

    • Part complexity: More axes = greater capability.
    • Material hardness: Tough materials like titanium require rigid machines.
    • Production volume: Choose based on batch production vs. continuous production.
    • Budget: Higher-axis machines require a larger initial investment.
    • Operator skill: Machines with 5+ axes demand highly skilled machinists.

    This is custom heading element

    From basic 2-axis lathes to advanced 7-axis systems, each machine type plays a specific role in meeting the diverse requirements of aerospace, automotive, and rail applications.

    CNC machining enables ultra-tight tolerances and complex geometries essential for flight-critical components. In the automotive sector, it supports high-speed mass production with consistent quality. For the rail industry, CNC technology ensures durability and dimensional accuracy for heavy-duty components under extreme conditions.

    As manufacturing continues to evolve, CNC technology remains at the core of innovation, helping engineers and machinists push the boundaries of what’s possible with speed, scale, and precision.

    [uncode_block id=”142671″ inside_column=”yes”]
  • What is Precision Machining? Aerospace-Grade Accuracy

    What is Precision Machining? Aerospace-Grade Accuracy

    [uncode_socials size=”lead”]

    Precision machining is the process of removing material from a workpiece with extreme accuracy, using computer-controlled tools to produce components with tight tolerances, exact dimensions, and superior surface finishes. This capability is crucial in sectors where even a micron of deviation can mean product failure, such as aerospace, medical, defence, and electronics.

    Unlike conventional machining, precision machining is not just about shaping a part, it’s about engineering with certainty. With tolerances often in the range of ±0.0001 inches (2.5 microns) or tighter, this discipline involves an interplay between digital design, high-performance CNC machinery, premium tooling, skilled operators, and rigorous quality control systems.

    This is custom heading element

    At the core of the process is CNC (Computer Numerical Control) technology. Engineers first create a CAD (Computer-Aided Design) model of the component. That model is converted into machine-readable instructions via CAM (Computer-Aided Manufacturing) software. From there, CNC machines, whether mills, lathes, grinders, or EDM machines execute the instructions with robotic precision.

    This is custom heading element

    • Tool path optimisation to reduce vibration and maximise accuracy
    • Thermal stability controls to maintain tolerance consistency
    • Multi-axis machining (3, 4, and 5-axis) for complex geometries
    • Live tooling and simultaneous operations for efficiency
    • CMM (Coordinate Measuring Machines) and metrology tools for inspection

    These processes are often supported by automated workflows, digital quality tracking, and Industry 4.0 systems to ensure reproducibility and traceability in high-stakes production environments.

    no image

    This is custom heading element

    This is custom heading element

    Precision machining has come a long way since its roots in the Industrial Revolution, where artisans used lathes and milling machines to hand-craft precision parts for steam engines and firearms. The invention of numerical control (NC) in the 1940s and the subsequent rise of CNC in the 1970s marked a turning point, allowing for:

    • Automation of complex geometries
    • Mass production of high-accuracy parts
    • Digital repeatability across factories and global supply chains

    Today, modern CNC precision machining blends advanced software, real-time monitoring, high-speed spindles, and AI-assisted quality control, making it the backbone of high-value manufacturing.

    no image

    This is custom heading element

    This is custom heading element

    Aerospace is arguably the most demanding industry when it comes to precision, reliability, and traceability. A single aircraft contains millions of individual components, each of which must meet stringent aerospace material and dimensional standards, such as AS9100 and NADCAP.

    Even minor discrepancies in part dimensions can lead to:

    • Stress fractures in high-load components
    • Vibration-induced fatigue in engine parts
    • System incompatibility during assembly
    • Catastrophic failure during operation
    no image

    This is custom heading element

    • Turbine blades: Require balanced mass distribution and perfect aerodynamic geometry
    • Landing gear components: Must endure repeated stress cycles without deformation
    • Fuel system parts: Require ultra-tight seals to prevent leaks under high pressure
    • Avionics enclosures: Must shield sensitive electronics from heat and EMI

    This is custom heading element

    Machining aerospace parts isn’t just about tight tolerances, it’s also about handling advanced, exotic materials such as:

    • Titanium alloys: Lightweight and strong, but difficult to cut
    • Inconel and Hastelloy: Heat-resistant superalloys
    • Carbon fibre-reinforced composites: Delicate to machine without delamination
    • Aluminium 7075 and 6061: Require precision balancing strength and weight

    Each material presents its own thermal expansion, chip control, and tool wear challenges, all of which must be accounted for in the machining process.

    no image

    This is custom heading element

    While both are subtractive manufacturing processes, CNC milling and CNC turning serve different roles and require different setups, tooling, and skillsets.

    This is custom heading element

    Milling involves a rotating cutting tool that moves across a stationary workpiece. Multi-axis CNC mills can produce complex 3D shapes, making them ideal for parts with:

    • Pockets, slots, contours
    • Intricate surface finishes
    • Threaded holes and tapped features
    • Undercuts and dynamic angles (via 4- or 5-axis machines)

    Modern 5-axis milling enables operations from multiple directions in a single setup, critical for both speed and accuracy.

    This is custom heading element

    Turning uses a rotating workpiece and fixed cutting tools. It’s the go-to choice for cylindrical components that require:

    • High-speed production
    • Uniform roundness
    • Smooth surface finishes
    • Fine tolerances on diameters and bores

    Turned parts include shafts, pins, valve stems, spacers, and bushings, many of which are central to fluid control, motion transfer, and load-bearing applications.

    no image

    This is custom heading element

    Feature CNC Milling CNC Turning
    Machine movement Rotating tool, stationary part Rotating part, stationary tool
    Ideal part shapes Prismatic, complex 3D Cylindrical, rotationally symmetric
    Axis support 3 to 5-axis Typically 2 to 4-axis
    Material removal speed Moderate Very high for round stock
    Typical tolerance range ±0.0002” or better ±0.0001” or better
    Common applications Brackets, housings, 3D contours Shafts, pistons, rollers, bushings

    This is custom heading element

    This is custom heading element

    As previously discussed, aerospace components live under extreme physical and regulatory pressures. Defence parts often go further, requiring additional security protocols and certifications for parts that are:

    • Used in military-grade aircraft
    • Built into radar and targeting systems
    • Embedded into missile guidance or naval propulsion systems

    Suppliers must meet defence contracting rules, such as DISP, ITAR, DFARS compliance, and cybersecurity standards, making the machining requirements as much about data integrity as physical precision.

    This is custom heading element

    In medical device manufacturing, parts not only need to be accurate, they must be safe for human implantation or contact. Precision machining supports:

    • Titanium bone plates and screws
    • Orthopaedic joint replacements
    • Surgical instruments with micro-tips
    • MRI-compatible equipment (non-magnetic materials)

    This is custom heading element

    The electronics industry demands precision in microns, particularly for high-frequency and high-speed devices. Common applications include:

    • Housings for optical sensors
    • Heat sinks with tight tolerances for thermal performance
    • RF shielding enclosures
    • Circuit board supports

    This is custom heading element

    From gearboxes to custom throttle bodies, precision machining enables performance tuning and innovation in the automotive and motorsport world. Race teams, in particular, rely on machined parts that maximise power-to-weight ratios without compromising durability.

    This is custom heading element

    Whether it’s a hydroelectric turbine, solar tracking system, or nuclear control rod, energy infrastructure relies on tight-fitting, corrosion-resistant components that can last decades under stress.

    This is custom heading element

    This is custom heading element

    Precision machining allows manufacturers to maintain incredibly tight tolerances with consistency across thousands of units, a non-negotiable for industries that demand perfect parts every time.

    This is custom heading element

    Modern CNC machines can handle a wide range of materials, including:

    • Stainless steel
    • Titanium
    • Aluminium
    • Engineering plastics
    • Brass, copper, bronze
    • Hardened tool steels

    This is custom heading element

    Because the cutting path is programmed and optimised digitally, material is removed only where needed, reducing waste and improving overall yield — a win for both economics and sustainability.

    This is custom heading element

    Precision machining integrates with robotics, inspection systems, and automated feedback loops, making it compatible with lights-out manufacturing and smart factory environments.

    no image

    This is custom heading element

    This is custom heading element

    Artificial Intelligence and Machine Learning are beginning to automate decision-making in tool selection, cut strategy, and predictive maintenance, unlocking new levels of autonomy and efficiency.

    This is custom heading element

    Combining 3D printing and CNC machining is creating new opportunities for net-shape manufacturing, particularly in aerospace where lightweight internal geometries must meet precise external mating features.

    This is custom heading element

    As industries like photonics and quantum computing advance, demand for nano-scale components will grow — pushing precision machining into entirely new technical domains.

    This is custom heading element

    Precision machining is far more than a manufacturing method — it’s an enabler of innovation, safety, and performance. It bridges the gap between design and functionality, giving engineers the confidence to push boundaries and industries the tools to build what was once impossible
    .
    In a world increasingly defined by technological integration, miniaturisation, and performance under pressure, precision machining will remain one of the most critical processes in modern manufacturing.

    Whether it’s launching spacecraft, performing life-saving surgeries, or delivering energy to millions, precision machining is the silent force that makes it all work to the micron.

    [uncode_block id=”142671″ inside_column=”yes”]
  • Types of Welding and What are They Used For?

    Types of Welding and What are They Used For?

    [uncode_socials size=”lead”]

    This is custom heading element

    Welding is a foundational process in modern manufacturing, fabrication and construction with many types of welding. It plays a critical role in joining metals through heat, pressure and a combination of both.

    Choosing the right welding technique is essential for achieving structural integrity, cost efficiency and project longevity.

    This overview goes through the most common types of welding used across industries today. Each type has unique benefits, applications and requirements.

    This is custom heading element

    Spot welding is a resistance welding technique that joins two or more metal sheets together by applying pressure and heat generated from an electric current.

    This method is widely used in automotive manufacturing, aerospace components, and metal furniture fabrication due to its speed and repeatability.

    This is custom heading element

    • High speed production
    • Excellent for thin sheet metal
    • Minimal filler material required
    • Clean and precise joints

    Despite its advantages, spot welding is typically limited to thin materials and requires access to both sides of the workpiece.

    no image

    This is custom heading element

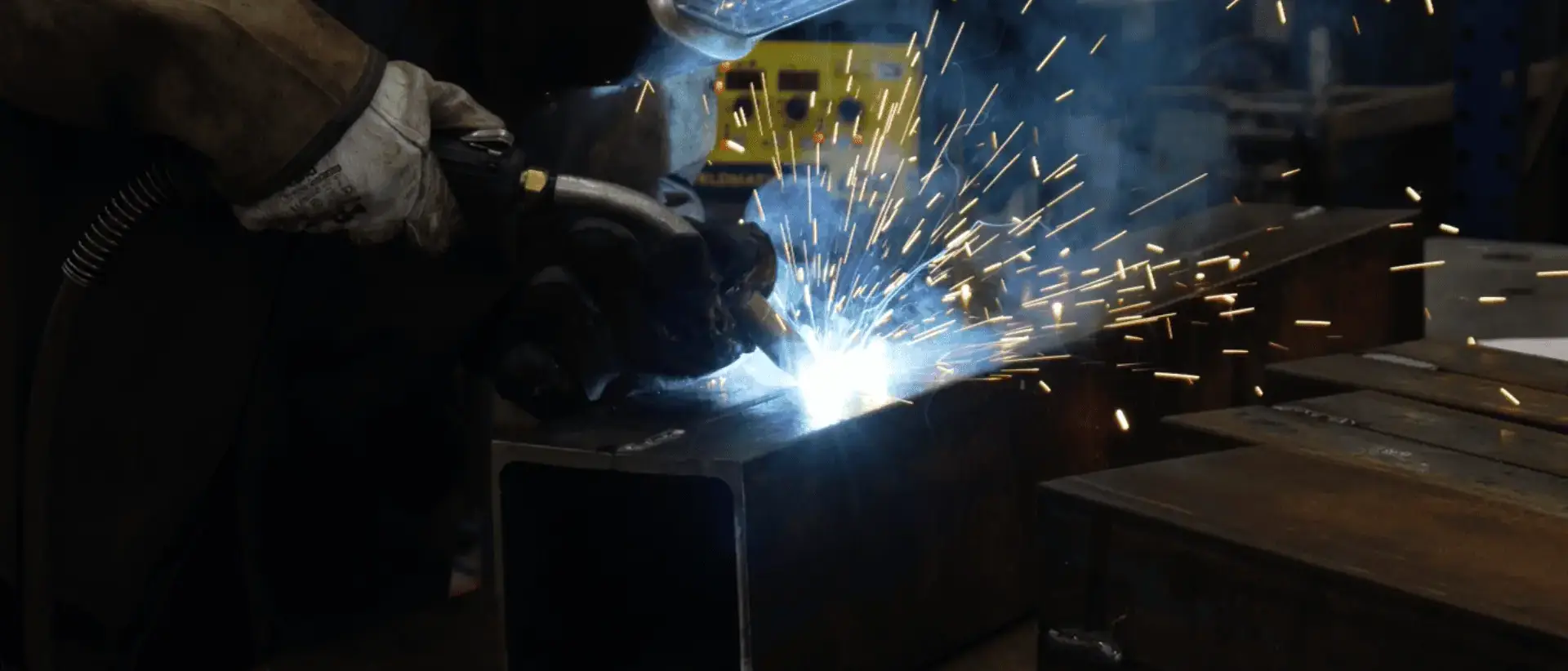

    MIG welding, formally known as Gas Metal Arc Welding (GMAW), uses a consumable wire electrode that is continuously fed through a welding gun.

    The process is shielded by an inert or semi-inert gas to protect the weld pool.

    This is custom heading element

    • Fast and efficient
    • Easier to learn than TIG
    • Suitable for thicker materials and long weld runs
    • Widely used in industrial fabrication and home DIY

    MIG welding may not produce welds as precise as TIG, and it is less effective outdoors due to sensitivity to wind affecting the shielding gas.

    no image

    This is custom heading element

    Fusion welding is a broad category that includes all welding methods where heat is used to melt the base materials.

    Unlike solid state welding, fusion welding involves the melting and fusing of metal at the joint, often using filler material.

    This is custom heading element

    • Applicable to various base metals
    • Allows deep penetration and strong joints
    • Supports automated welding systems
    • Includes subtypes such as arc, laser, and electron beam welding

    Fusion welding is highly versatile but often requires strict control over temperature and technique to avoid warping or defects.

    no image

    This is custom heading element

    Welding is not a one size fits all process. Each method, whether it is spot, TIG, MIG, or fusion, serves a specific purpose depending on material type, thickness, precision requirements, and production speed.

    Understanding these core welding types will help engineers, fabricators, and project managers select the most appropriate method for their applications.

    [uncode_block id=”142671″ inside_column=”yes”]
